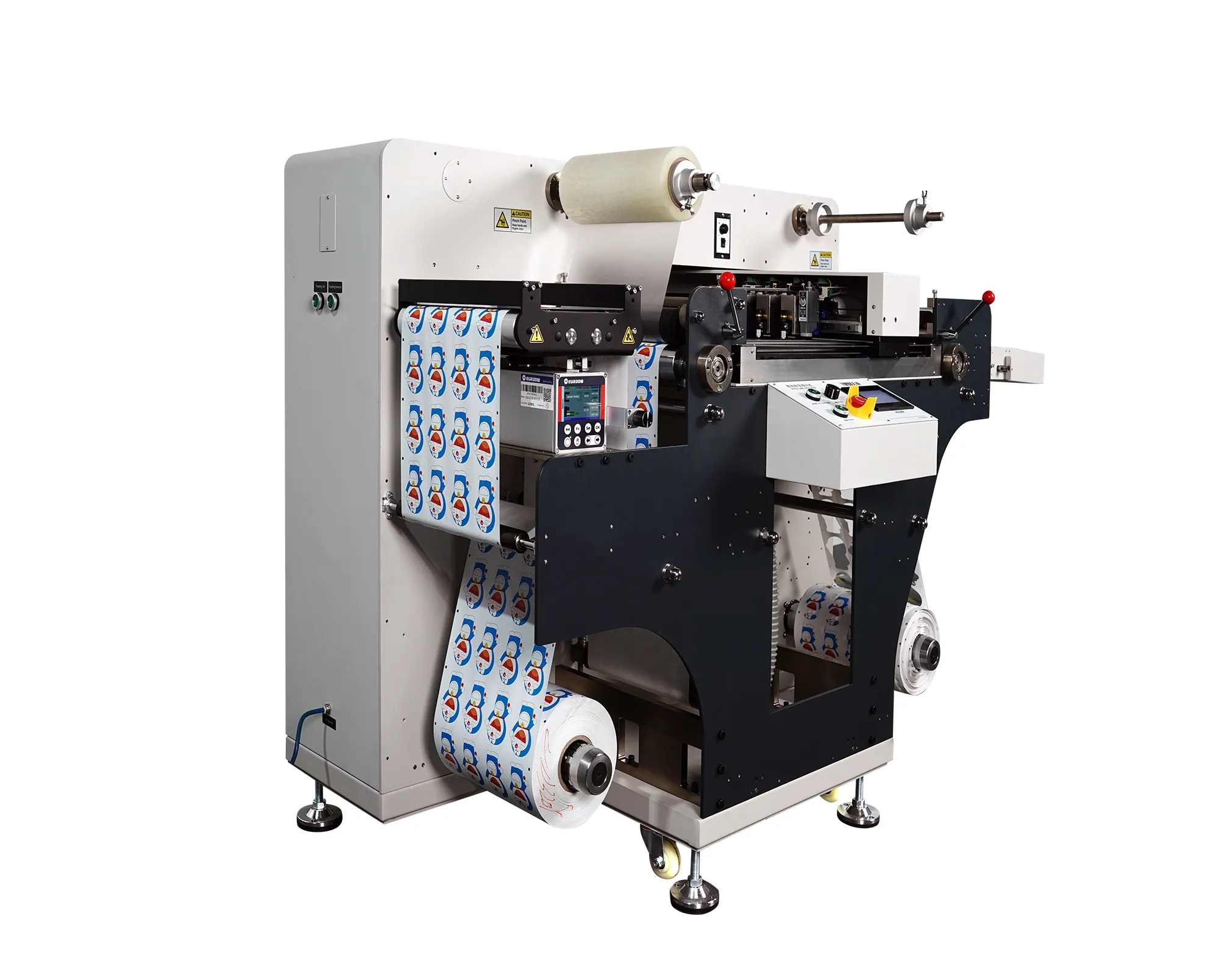

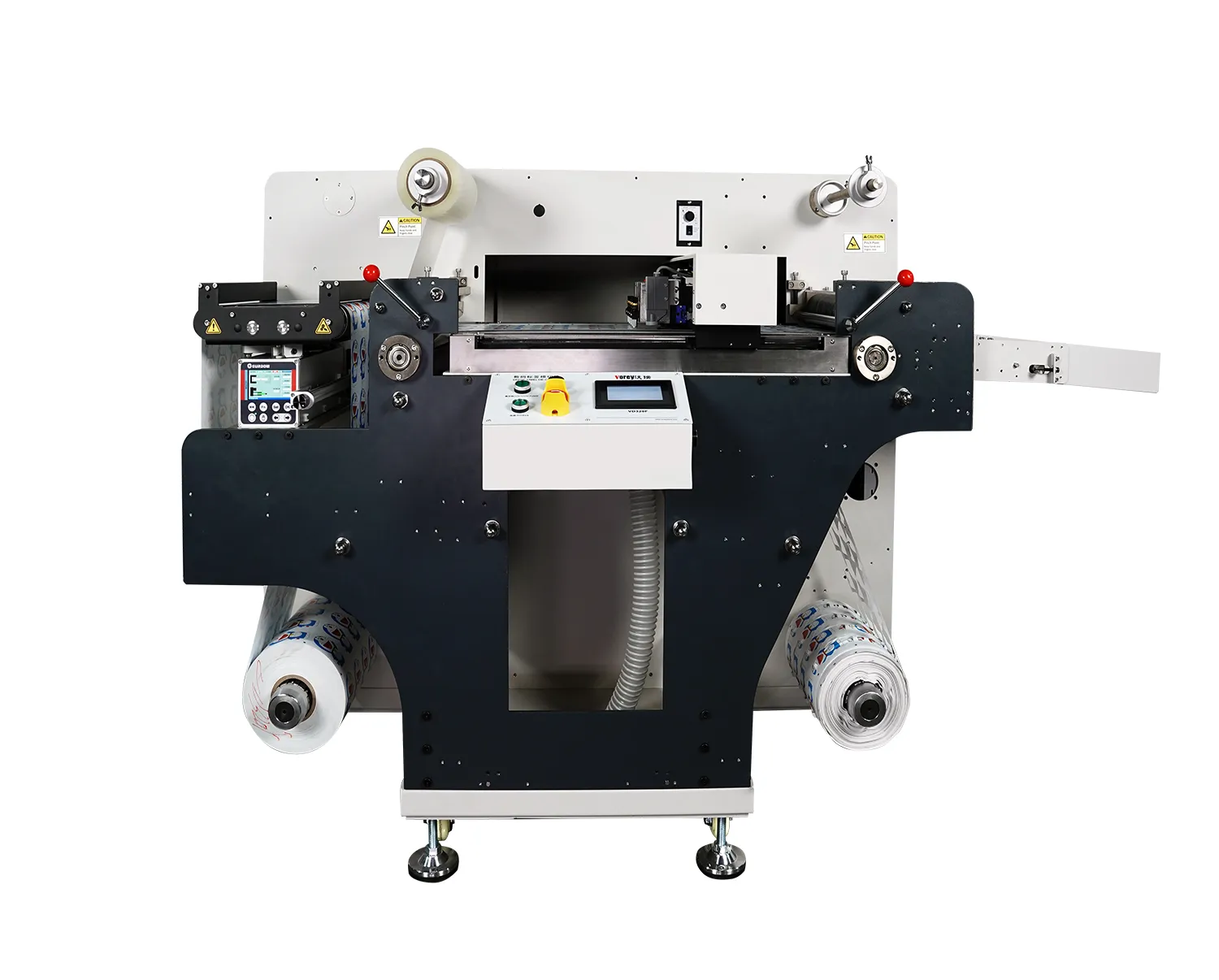

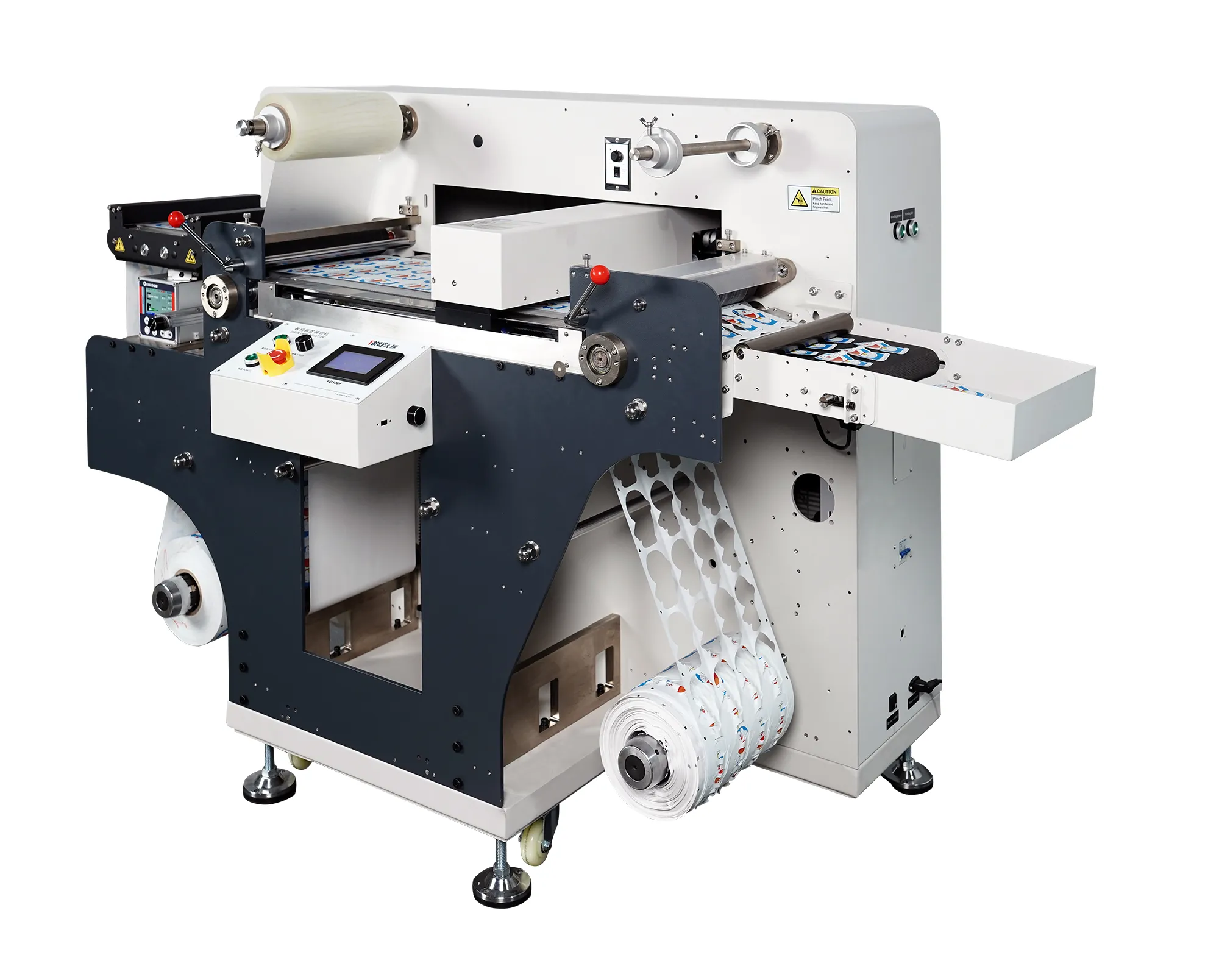

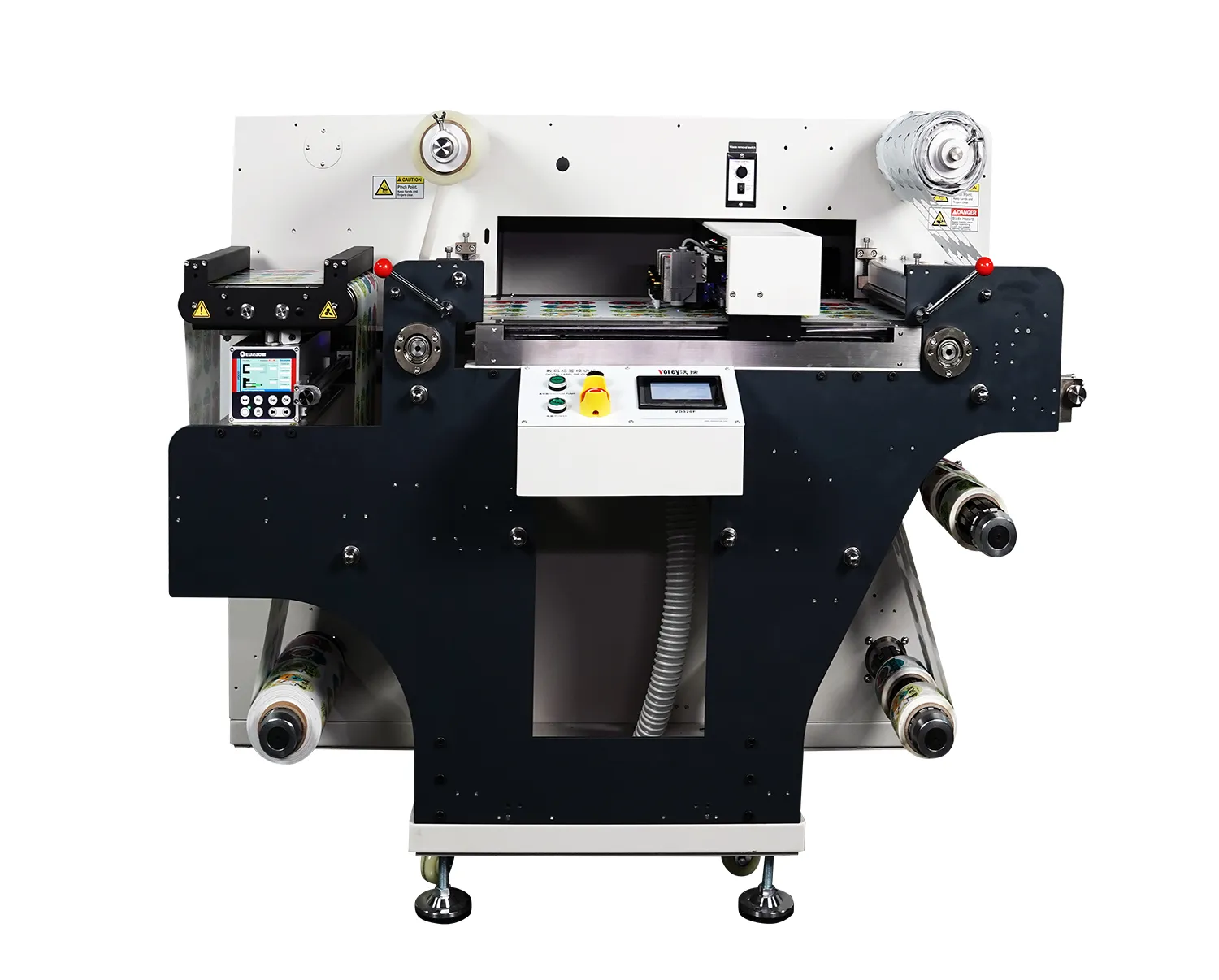

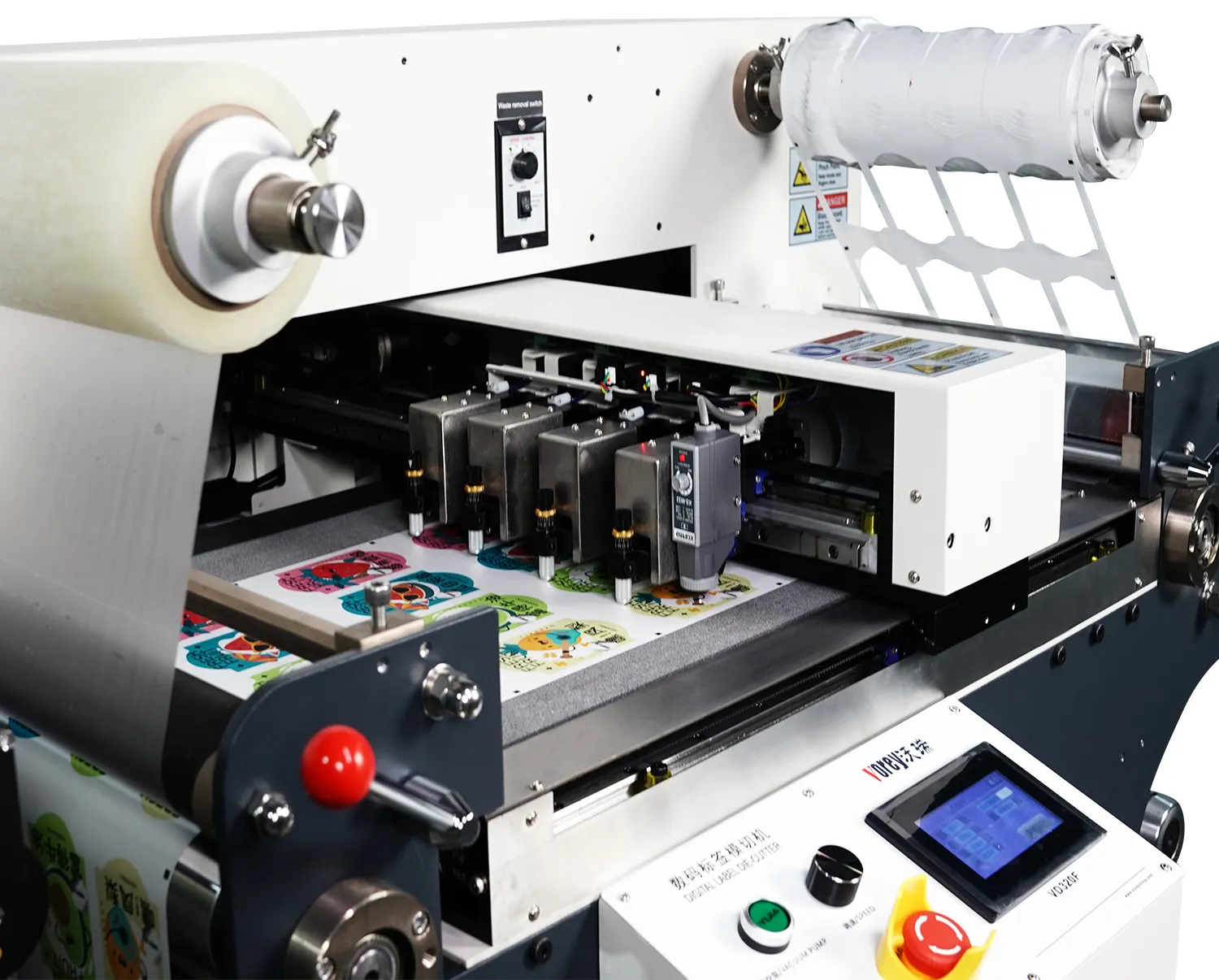

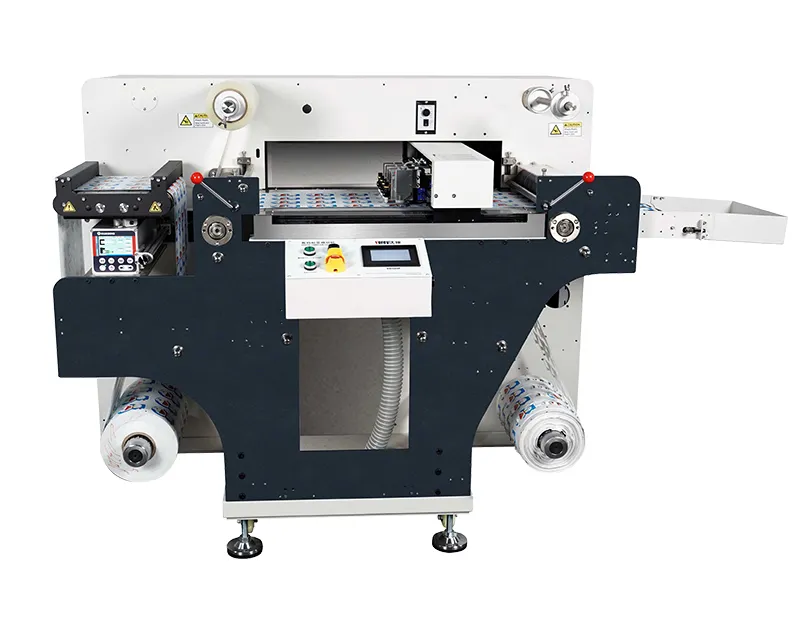

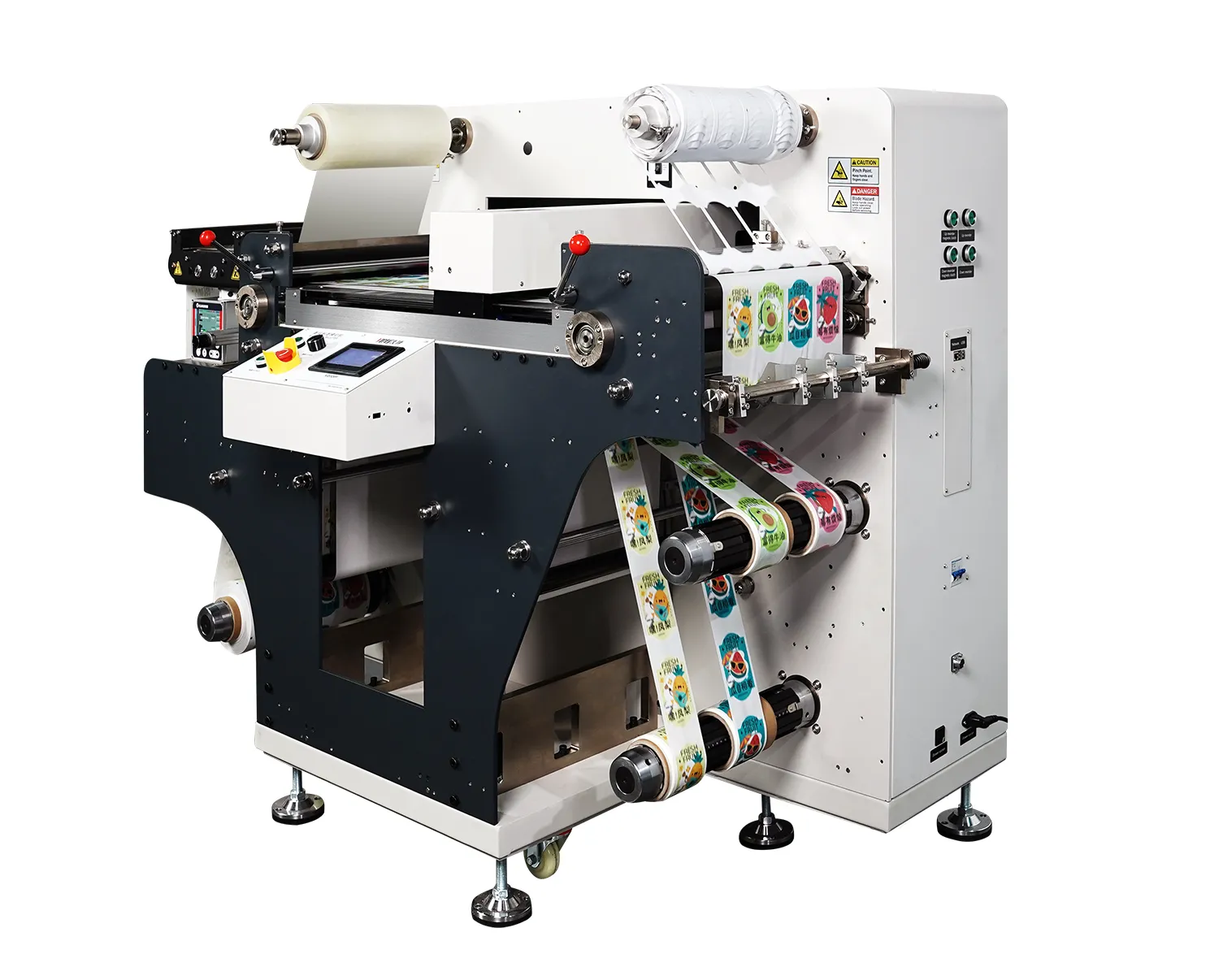

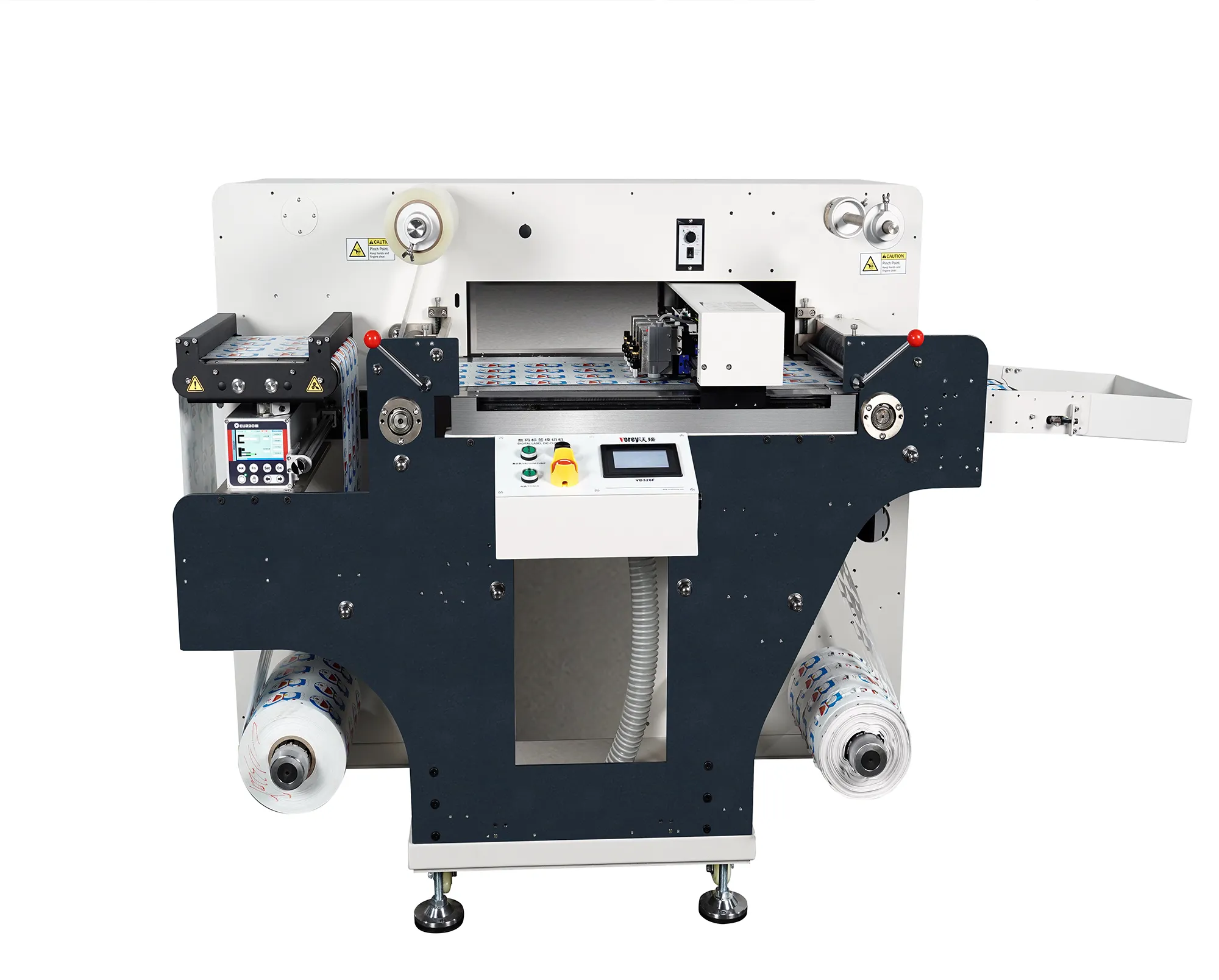

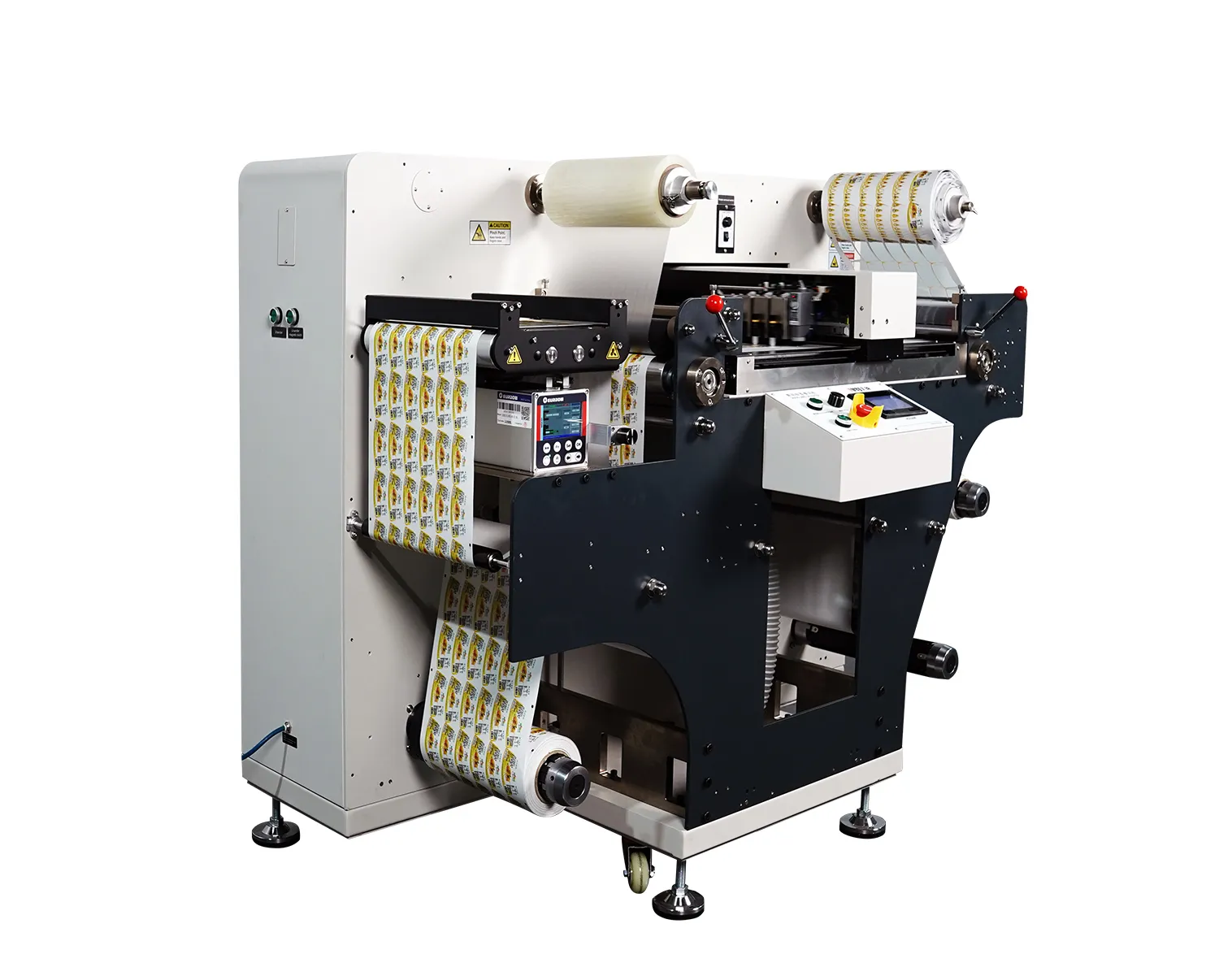

The Vorey VD320F Intelligent Digital Label/Card Die-Cutting Machine is a low-cost, full-featured, high-efficiency, production-oriented label die-cutting solution, developed from Vorey’s 10+ years of R&D and design experience. It supports laminating, die-cutting, waste removal, slitting, and slicing, and enables both full-cut and half-cut one-pass forming. When paired with a conveyor belt, it also supports card cutting. A new control algorithm and software enable automatic job changeover and automatic adjustment of the spacing between die-cutting heads.
| VD320X | VD320F | ||||
| Configuration function | Laminating + four heads + waste discharge + slitting + double receiving | Laminating + four heads + waste discharge + single receiving + conveyor belt | |||
| Max. media roller | diameter 450mm | ||||
| Cutting media width | 40-340mm | ||||
| Max.label width | 310mm | ||||
| Min.label length | 10mm | ||||
| Max.label length | 400mm (segmentation get to 1200mm) | ||||
| Cutting speed | max.6m per minute (depend on label shape and size) | ||||
| Cutting blades | 4 pcs | ||||
| Slitting blades | 4pcs (standard)max.15pcs | ||||
| Cutting tracking | Single eye mark /double eye marks/CCD | ||||
| Die-cutting technology | with tungsten steel rotary blades | ||||
| Cutting precision | 0.1mm (duplicate) | ||||
| Slitting speed | Same speed as die cutting | ||||
| Slitting width | 10-310mm | ||||
| Slitting precision | 0.1mm | ||||
| Machine size | 1600*1000*1360mm | ||||
| Machine weight | Approx: 520kgs | ||||
| Power | 110-127VAC 50-60HZ, 1000WATTS 220-240VAC 50-60HZ, 1000WATTS | ||||
| Warranty | 1 year (besides high consumable parts) | ||||
| Data connectivity | Usb flash drive/Ethernet 10/100Base-T | ||||
| Options | Slitting unit Film back liner removal Sheet paper cutter CCD camera | ||||
