Import file automatically
Auto adjust blade distance

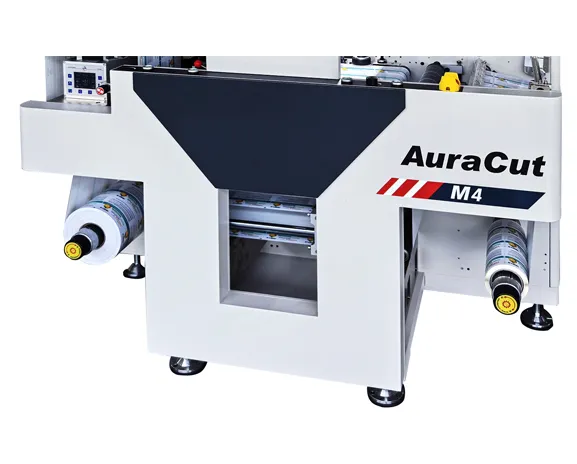

Tension adjustment automatically
Auto optimize le and set drop point
Auto change job by digital number or QR code

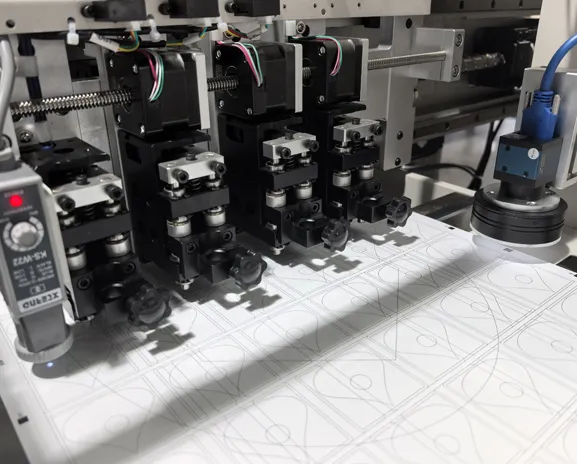

4 cutting heads
5 slitting unit
One rewinder
Lamination system
Waste removal system

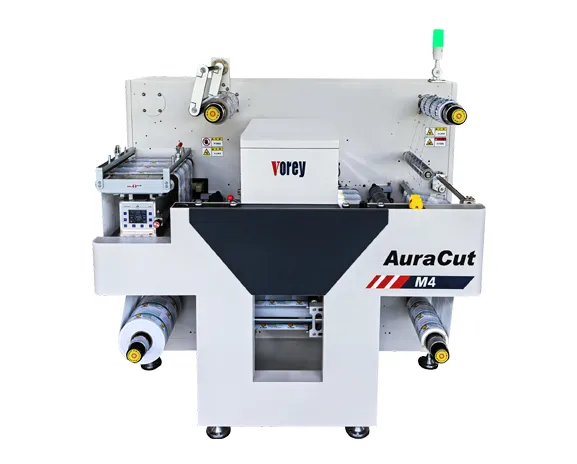

| Model | Auracut M4 |
| Blade dropping mode | Solenoid |
| Blade depth adjustment | Manual rotate |
| Technology | Blade dropping mode Cluth |
| Cut mode | Roll to roll fly |
| Max.roll dia. | 500mm |
| Cut speed | 9m/m (4cm * 15cm) |
| Cut precision | 0.1mm (repeat) |
| Media width | 100-350mm |
| Max.label width | 330mm |
| Max.label length | 500mm |
| Cut track | Single eye mark/double eye mark/CCD Camera |
| Cut head qty | 4 sets |
| Slitter qty | 5 sets (up to 15 sets) |
| Rewinder qty | 1 set 3" |
| Machine size | 1540×1005×1636mm |
| Machine weight | 980kgs (approx.) |
| Power supply | 220VAC 2000W |
| Data transfer port | USB2.0/Ethernet 10/100Base-T/GPIO |
| Software | 1.0 Mini VOREY SW |
| File format | PLT, DXF, PDF |
| Other functions and device | Auto adjust blade distance | Auto job change (digital number/QR code) | Automatic file import | Web guide | Auto optimize file and set drop point | Auto tension adjustment | Waste removal | Counter cutting jobs |
| Options | Waste discharge interruption shutdown | Film liner remove | Waste removal heating | sheet cutter (individual) | Auto change sheet cutting job | link with printer parts |
