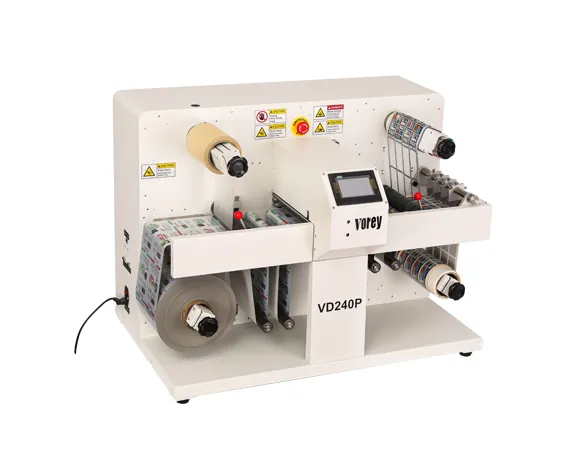

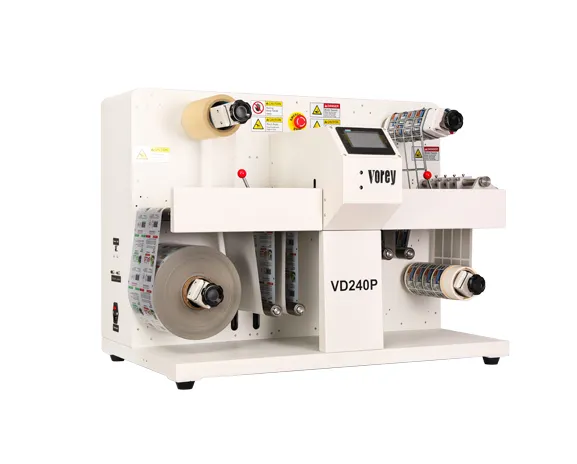

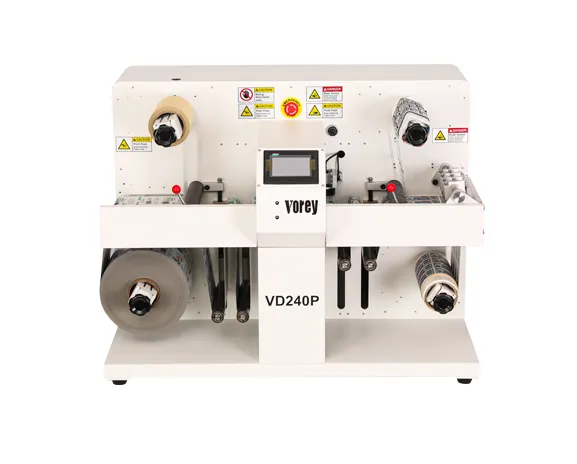

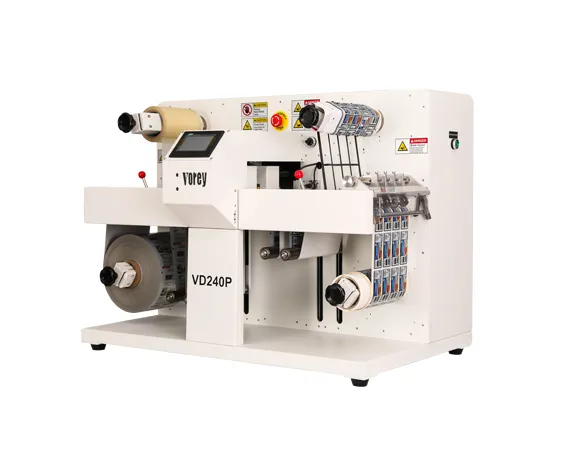

VD240P has automatic change function, can meet the needs of small batch and more proofing customers. The tool distance can be adjusted automatically according to the document, which is greatly convenient for users to operate. At the same time, it can be used online with Zebra/Epson /VIP label printers, which can solve the die-cutting work of customers with one button.
Fast and high precision with full-servo motor
Integrate lamination, die-cutter, waste removal, slitter and rewinder together
Dual head design automatically adjusts and distributes the cutter
SICK track sensor can track single eye mark or double eye marks
Qr code or digital automatic switch file, automatic access to cut files
Intelligent cutting with trajectory optimization
| Max.media roller | 290mm | |
| Cutting media width | 80-240mm | |
| Max label width | 230mm | |
| Min label length | 10mm | |
| Max label size | 300mm (segmentation get to 2000mm) | |
| Cutting speed | max9m/min | |
| Qty of heads | 2 pcs | |
| Data connectivity | Usb flash drive/Ethernet 10/100Base-T | |
| Die-cutting technology | With tungsten steel rotary blades | |
| Cutting precision | -+0.1mm | |
| Cutting tracking | Single eye mark /double eye marks/CCD | |
| Machine size | 910*630*740mm | |
| Machine weight | Approx: 120kgs | |
| Power supply | 110-127VAC 50-60HZ, 1000WATTS 220-240VAC 50-60HZ, 1000WATTS | |
| Warranty | 1 year(besides high consumables parts) | |
