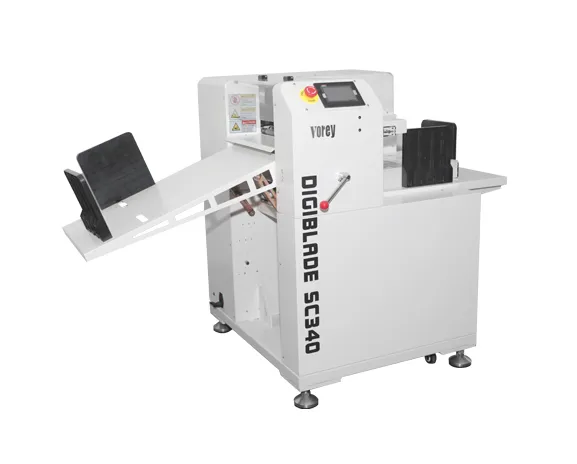

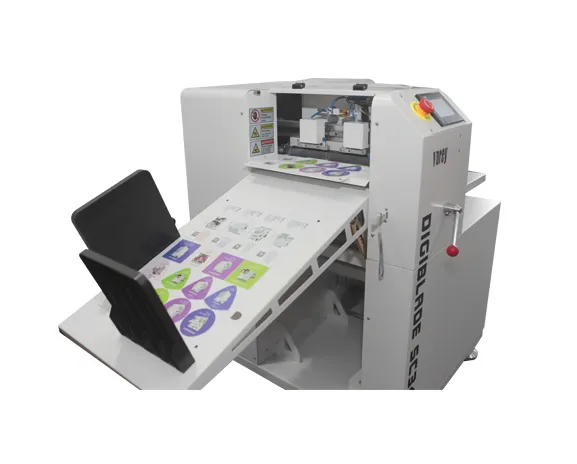

SC340X digital sheet label die-cutter, you can make sample order or small order without trouble. To be important, it has short delivery time which can save your time and cost, improve your working efficiency as well. Unique double heads cutting with full-servo motor technology runs with high speed, therefore you can get a perfect job exceeding your expectation. Compared with the last version, the new SC340X gets a double-roller design, it can support the paperboard and tag within 500g. what’s more, the optional creasing head can go together with the die-cutting head, perfect for small batch packet production.
Fast and high precision with full-servo motor

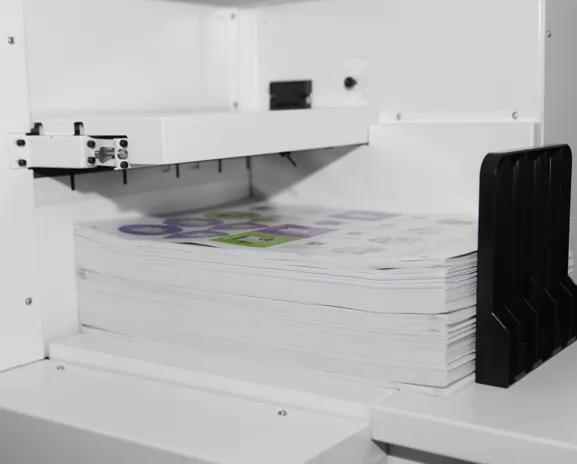

Industrial design with big capacity feeder
Stable and efficient suction feeding system

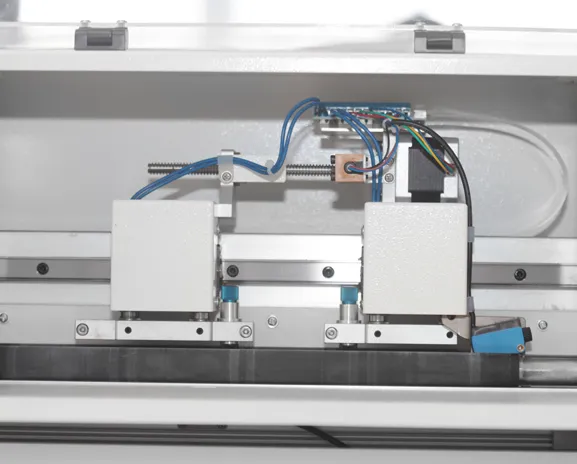

Double cutting heads which distance can be adjusted automatically
SICK track sensor can track single eye mark or double eye mark
Intelligent cutting with trajectory optimization
| Max.feeder capacity | 1000sheets/200gsm |
| Max.media size | 340*570mm |
| Min.media size | 210*148mm |
| Max.label size | 340*550mm |
| Min.lable size | 10*10mm |
| Cutting speed | max3000mm/s |
| Qty of heads | 2 pcs |
| Data connectivity | USB 2.0/Ethernet 10/100Base-T/GPIO |
| Die-cutting technoligy | With tubgsten steel rotary blades |
| Cutting precision | +0.1mm |
| Cutting tracking | Single eye mark or double eye mark |
| Machine size | 710*850*1117mm |
| Machine weight | Approx: 120kgs |
| Power supply | 110-127VAC 50-60HZ, 1000WATTS 220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1 year(besides high consumables parts) |
