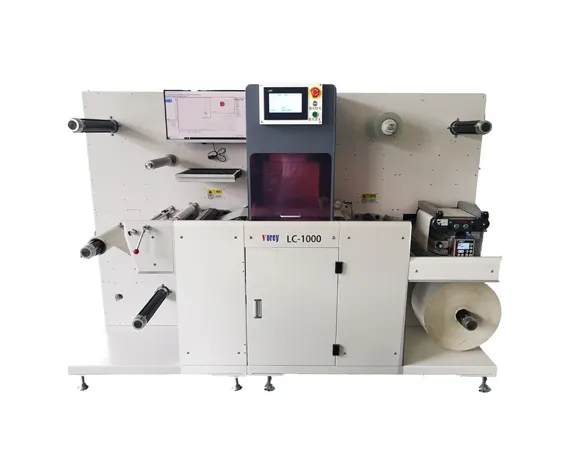

The LC100 Digital Laser Die-Cutter is a roll-to-roll label cutting machine featuring an automatic tension system. It integrates laminating, die-cutting, waste removal, and sheet cutting in one unit. This unique design enables full cut, half cut, dash cut, and character engraving in a single job. It not only cuts labels but also reads variable data to cut each label without limitation. With blank cut, fly cut, and intermittent cut modes, it can process various label types and significantly boost production efficiency.
Its running must be connected with machine
Easy user operation interface and media management system
Software can open PLT, PDF, AI, and DXF format
It can select cutting mode depending on different shapes
Trajectory optimization for perfect cutting
| Max. media roller | diameter 450mm | |
| Cutting media width | 40-350mm | |
| Max.label width | 350mm | |
| Laser source | 10.6um co2 | |
| Average power | 220 Watt（Peak power 450Watt） | |
| Cutting Speed | max.50m per minute (depend on label shape and size) | |
| Focus Spot Size | 0.025mm | |
| Die-cutting mode | No Mark /Intermittent /Fly | |
| Cutting tracking | Color sensor detection and web guide | |
| Cutting precision | 0.1mm | |
| Tension system | 5 shafts auto adjustment | |
| File format | PLT. PDF. AI. DXF | |
| environment | Temperature：20℃-23℃,Humidity：45-55%(RH) | |
| cooling mode | Water cooling | |
| Machine size | 1840*1171*1710mm | |
| Machine weight | Approx: 720kgs | |
| Power | 110-127VAC 50-60HZ,3000WATTS 220-240VAC 50-60HZ, 3000WATTS | |
| Warranty | 1 year (besides high consumable parts) | |
| Accessories | Dust removal device Sheet paper cutter Web guide Cooling Chiller | |
