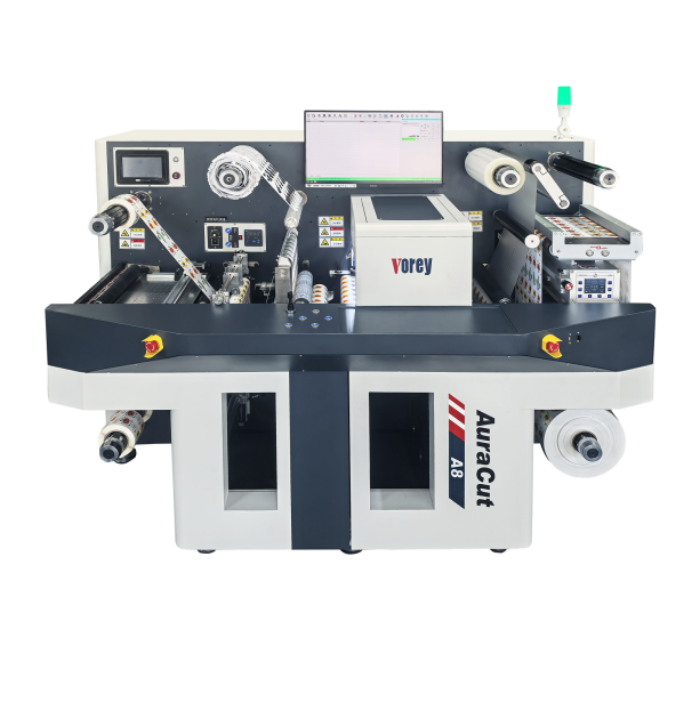

With booming demand for multi-batch, special-shaped and variable-data label orders, traditional die-cutting suffers from long tooling lead-time and tedious job change-over, failing to keep pace with modern label converters. The Vorey AuraCut A8 Digital Label Die-Cutter integrates die-cutting, slitting, lamination, matrix stripping, sheet cutting and rewinding in one single machine. It completes full post-press workflows without physical dies, enabling fast job switching and high-volume precision production.
Equipped with 8 sets of independently servo-controlled cutting heads. The head spacing can be auto-optimized by software, opening or closing automatically according to label layout to fit various label sizes. It comes standard with 9 slitting units, expandable up to 15 units maximum. Slitting width ranges 10-330 mm with slitting precision of ±0.1 mm.
Max cutting speed reaches 12 m/min. Standard maximum label length is 700 mm, while multi-segment cutting supports up to 6000 mm. Slitting speed can hit 70 m/min for high-volume slitting assignments. Servo-driven blade dropping is adopted; blade depth can be set via digital input plus vision-based calibration. Repeating cutting precision stays stable at 0.1 mm during long-time continuous production, delivering clean burr-free cuts without damaging liner backing paper.
Built-in CCD camera positioning & recognition system, positioning response time only 0.03 seconds. It can read registration marks, serial numbers and QR codes for automatic web tracking. After file import, cutting paths are auto-optimized; manual repeated alignment is eliminated. The machine can auto-switch cutting files for non-stop processing of serial-number and QR-code variable-data labels, drastically cutting setup labour hours.
Powered by on-board industrial PC and Vorey Software 4.0:
Auto-optimize cutting files
Dual counters for production meters & finished jobs
Blade depth setting via value input & visual verification
Local file database for job storage
Auto-generate production logs for plant management review
One machine handles multiple post-press procedures, avoiding material transferring across separate machines and saving workshop floor space & labour cost.
Noise-reducing cold lamination unit: Complete label lamination in-line.
Robust waste-removal system: Efficient matrix stripping, optional waste-removal interruption stop protection.
Built-in sheet cutter: Convert roll stock into finished sheets, supporting both roll-to-roll and roll-to-sheet workflows.
Dual rewinder option: Add second-station with another 8 cutting heads to double throughput.
Rich optional modules: Visual inspection, liner peeling, waste-removal heating, auto cutting-job change and more on demand.
Max media roller diameter: 470 mm.
Working material width: 210-360 mm; maximum label width:330 mm; minimum label length:10 mm.
It steadily processes mainstream self-adhesive substrates including coated paper, PET, PP and synthetic paper. Machine dimension: 203513401695 mm; net weight:1300 kgs. Wide-voltage power input 110-240 VAC fits domestic and overseas converting plants. 1-year warranty provided (excluding high-wear consumable parts).
No physical dies required: Produce new orders straight after file import, saving tooling cost & waiting time. Profitable for sampling and small-batch orders. ✔ Ultra-fast job change: Switch production orders with one-click software operation; job transition finished within 10 seconds. Perfect for high-mix short-run label business.
