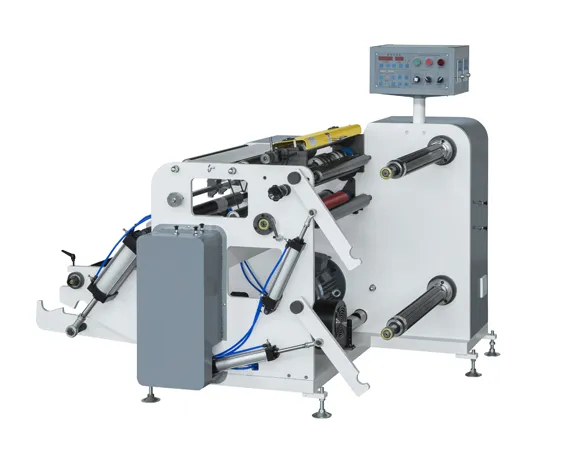

A proprietary, patented product: a high-speed label slitting machine featuring an automatic unwinding system for large rolls. The winding system supports air-expandable cores of various sizes. It offers high-precision length measurement and counting functions.
| Type | FQ-DC450 | FQ-DC550 |
| Cutting Speed | 20-120m/min | 20-120m/min |
| Max Web Width | 450mm | 550mm |
| Max Unwinding Diameter | 900mm | 900mm |
| Max Rewinding Diameter | 600mm | 600mm |
| The cutting precision | ±0.15mm | ±0.15mm |
| Overall Diameters | 1750×1200×1450(mm) | 1750×1300×1450(mm) |
| Export packaging dimensions | 1850×1300×1550（mm） | 1850×1400×1550（mm） |
| Machine Weight | (about)810kg | (about)830kg |
| The main motor power | 3kw | 3kw |
| Voltage | 220V | 220v |
