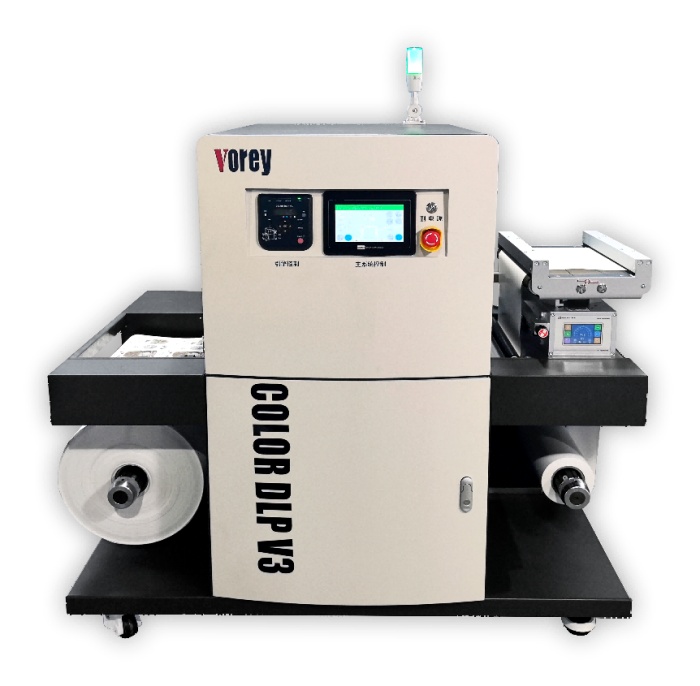

The label printing industry is facing surging demand for fragmented, small-batch and personalized orders. Conventional flexo printing suffers from high plate-making cost, time-consuming job changeovers and limited media compatibility, making it hard to rush custom orders. The brand-new Vorey Color DLP V3 CMYK LED Roll-to-Roll Digital Label Printer delivers industrial-grade stability, universal media compatibility and high-speed production, enabling converters to capture variable data & quick-turn jobs and eliminate digital transformation pain points.
Equipped with premium 4-color CMYK LED printing technology(from XEROX) and newly engineered optical lenses for precise ink control, the machine delivers rich, consistent color reproduction with smooth gradients, tiny texts and sharp logos without banding. It runs at a stable print speed of 7.26 meters per minute. No plates or film negatives are required—simply import print files and start production instantly. Ideal for samples, small batches and variable-data labels (QR codes, serial numbers) for cosmetics, food, daily chemicals, electronics and creative packaging brands.
Supports all substrates from 60μm to 280μm: high-gloss paper, matte sticker paper, PET, PP, PE films and GHS specialty synthetic materials,applied to different industries. Dual-track feeding enables non-stop continuous printing, preventing wrinkling or stretching of thin films and lightweight paper. Media width ranges from 140mm to 320mm. Max roll diameter reaches 450mm with a maximum roll weight of 47.2kg, reducing roll change frequency for long-hour uninterrupted production.
Integrated auto webguide and intelligent auto tension control system with front & rear track marks to calibrate web path in real time. It automatically adapts tension for all substrates, eliminating stretched, distorted or misaligned printed images. Material waste is drastically cut down, while wear on the print engine is minimized to extend overall equipment service life. Built-in connecting media table, media processing module and printing coding system realize highly integrated workflow without extra auxiliary equipment, saving factory space.
Dual voltage compatibility: 110–127V AC / 220–240V AC, rated power 2800W, standby power only 100W. Stable operation under 45%–55% RH humidity without color shift during all-day continuous production.
High-performance control system: Powered by Intel Xeon E5-1650 / Core i7-3930K CPU, running Windows 7 Professional 64-bit OS. It handles large high-definition files and bulk variable data smoothly without lagging.
Heavy-duty unwinder with auto tension adjustment ensures stable transport of thick paper and flexible film rolls without vibration.

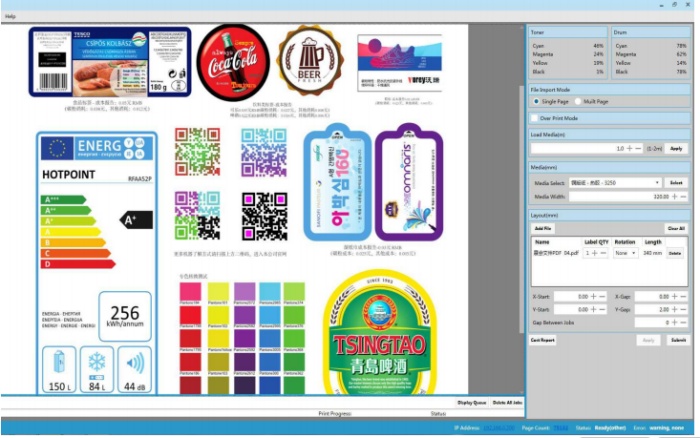

In order to get a high quality printing, Vorey researched and developed a typical and easy printer software for V3. This software has friendly interface. It is easy to understand,automatically edits jobs together, and integrates with programmatic printing. Phaser Match 5 color management system is nested to the printing software. You can get best image label and finish the jobs easily. Central touch control panel with visualized workflow. New operators can master basic operation with minimal training, removing complicated setup procedures of traditional printing. Fast job switching maximizes productivity for small orders and sampling work. Compact footprint fits easily into small printing workshops and label conversion stores. Low investment cost allows you to seize high-margin custom label business and stand out in competitive markets.
