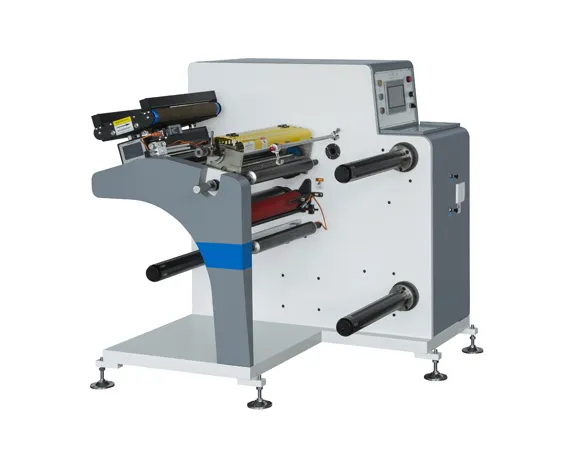

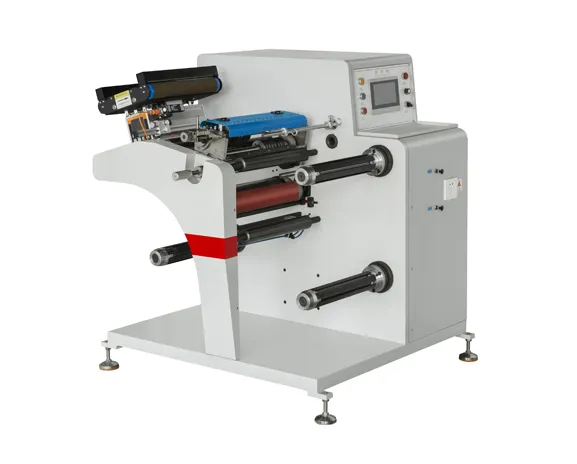

A proprietary, patented product: a high-speed slitting machine for narrow-width labels, featuring a high-end, fully servo-driven winding and unwinding taper tension system and a process web guiding system. It includes meter counting and piece counting functions, automatically reduces speed or stops in case of material shortage, and supports anti-static treatment.
Type | 350 | 450 |
Cutting speed | Single-servo 0-200m/min Three-servo 0-350m/min | Single-servo 0-200m/min Three-servo 0-350m/min |
Max web width | 350mm | 450mm |
Max unwinding diameter | 650mm | 650mm |
Max rewinding diameter | 600mm | 600mm |
Overall diameter | 1200*1200*1300(mm) | 1200×1300×1300(mm) |
The main motor power | 1.5kw | 2.2kw |
Weight | 700kg | 900kg |
Voltage | 220v | 220v |
Total power | 2kw | 3kw |
