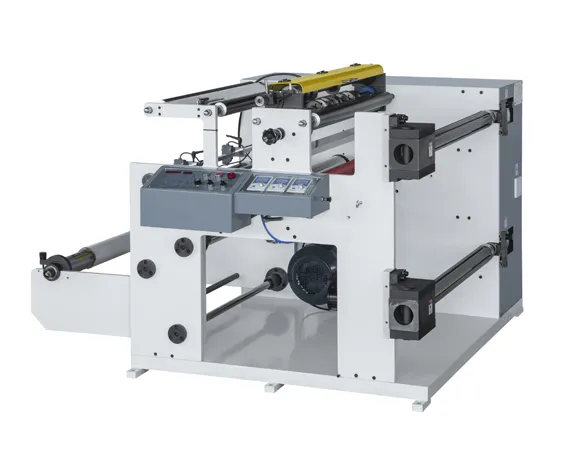

The FQ-3C350 automatic slitter is a complementary product to the automatic die-cutting machine. It is suitable for cutting narrow-width paper and features automatic meter counting, automatic counting, automatic stopping at set length and quantity, and automatic unwind control via photoelectric sensors. The machine has a compact structure, fast speed, high efficiency, accurate slitting, simple operation, and stable running.
Type | FQ-3C350 | FQ-3C450 |
Cutting Speed | 20-120m/min | 20-120m/min |
Max Web Width | 350mm | 450mm |
Max Unwinding Diameter | 500mm | 500mm |
Max Rewinding Diameter | 500mm | 500mm |
The cutting precision | ±0.15mm | ±0.15mm |
Overall Diameters | 1150*1020*1350(mm) | 1150*1120*1350(mm) |
Export Packaging Size | 1335*1180*1490（mm） | 1335*1280*1490（mm） |
Machine Weight | (about)520kg | (about)540kg |
The main motor power | 1.5kw | 1.5kw |
