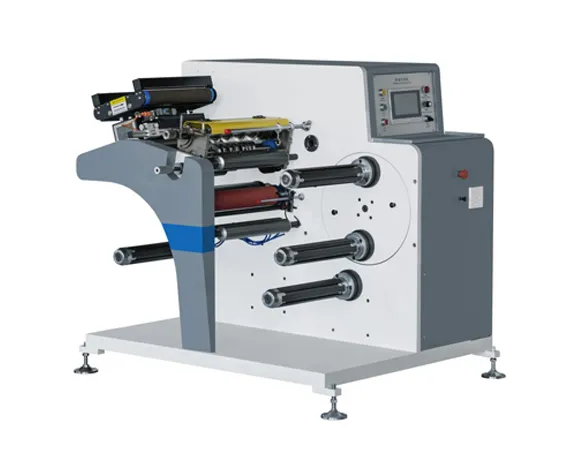

A proprietary, patented product: a high-speed slitting machine for narrow-width labels, featuring a high-end, fully servo-driven winding and unwinding taper tension system and a process web guiding system. It includes meter counting and piece counting functions, automatically reduces speed or stops when material runs low, and supports anti-static treatment.
Type | FQ-GB350 | FQ-GB450 |
Cutting speed | 20-350m/min | 20-350m/min |
Max web width | 350mm | 450mm |
Max unwinding diameter | 650mm | 650mm |
Maximum AB-axis winding diameter | 400mm | 400mm |
Max rewinding diameter | 500mm | 500mm |
Overall diameter | 1410×1130×1300(mm) | 1410×1230×1300(mm) |
The main motor power | 1.5kw | 2.2kw |
Weight | 855kg | 1055kg |
Voltage | 220v | 220v |
Total power | 2kw | 3kw |
