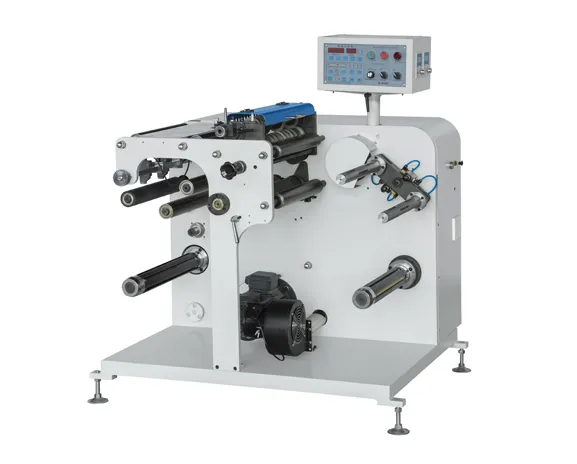

The FQ-B350 Automatic Slitting Machine is designed to complement automatic die-cutting machines. This machine is suitable for slitting narrow-width paper and features automatic length measurement, counting, and automatic shutdown upon reaching the set length or quantity, as well as automatic unwinding controlled by photoelectric sensors. The machine boasts a compact design, high speed, high efficiency, precise slitting, simple operation, and smooth running.
| Type | FQ-B350 | FQ-B450 |
| Cutting Speed | 20-120m/min | 20-120m/min |
| Max Web Width | 350mm | 450mm |
| Max Unwinding Diameter | 500mm | 500mm |
| Max Rewinding Diameter | 500mm | 500mm |
| Maximum roll diameter on the AB shaft | 350mm | 350mm |
| The cutting precision | ±0.15mm | ±0.15mm |
| Overall Diameters | 1150*1020*1350(mm) | 1150*1120*1350(mm) |
| Export packaging dimensions | 1250*1120*1450（mm） | 1250×1220×1550（mm） |
| Machine Weight | (about)550kg | (about)600kg |
| The main motor power | 1.5kw | 1.5kw |
