The Aurapark DM3: Precision Spot Varnish & Foil Enhancement Powered by Xaar Printhead Technology

At the heart of any high-performance digital printer lies the printhead—the core component responsible for propelling ink (or functional fluids) onto the substrate with microscopic accuracy. The printhead’s technology directly determines print quality, speed, stability, and long-term reliability.

Broadly, inkjet printheads fall into two main categories: thermal (bubble jet) and piezoelectric.

Thermal printheads, used by brands such as HP and Canon, rapidly heat ink through micro-resistors to create vapor bubbles that push droplets out of the nozzle. While this enables fast printing and vibrant color at a low replacement cost, the technology requires high temperatures that can cause ink carbonization, nozzle clogging, and relatively short service life (typically 1–3 years). They are also prone to blockage if left idle.

In contrast, piezoelectric printheads—such as those developed by Xaar and Seiko—use a piezoceramic element that changes shape when voltage is applied, mechanically squeezing the ink chamber to eject droplets without any heating. This fundamental difference delivers major advantages: no thermal stress on fluids, far more precise droplet control, higher resolution, and significantly longer lifespan (often reaching 50,000+ operating hours) with strong anti-clogging performance. Although piezo heads usually involve a higher initial cost and more complex maintenance, they do not require frequent replacement and handle demanding production environments with ease.

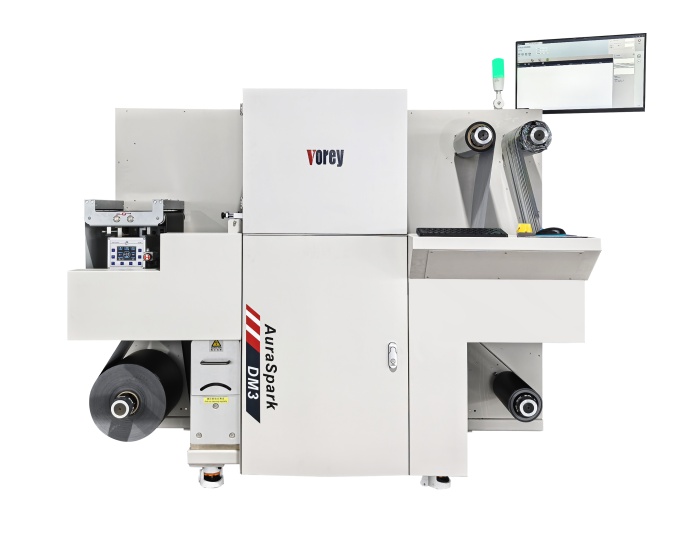

The Aurapark DM3 digital enhancement machine leverages these inherent strengths of Xaar piezoelectric printheads to deliver exceptional spot varnish (UV/gloss coating) and foil stamping effects. Because the Xaar head operates at room temperature and offers superior droplet placement accuracy, the DM3 can consistently lay down smooth, high-clarity varnish layers and achieve crisp, metallic foil finishes on a wide range of media. The robust, long-life design of the Xaar piezo technology ensures stable, high-quality output over extended production runs—making the DM3 a reliable workhorse for print shops seeking to add premium value through digital embellishment.

By choosing piezoelectric precision over thermal alternatives, the Aurapark DM3 brings durability, fine detail, and repeatable excellence to every enhanced print job.
