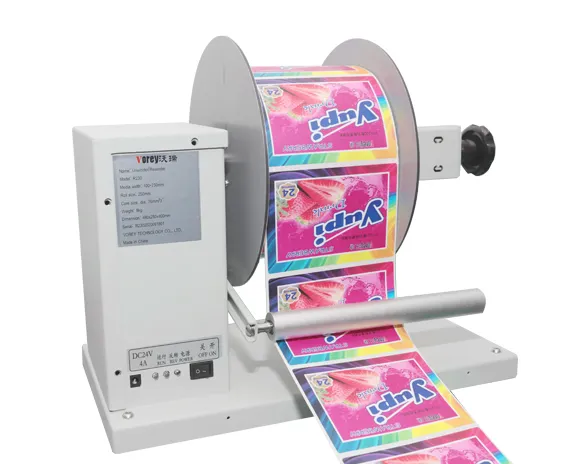

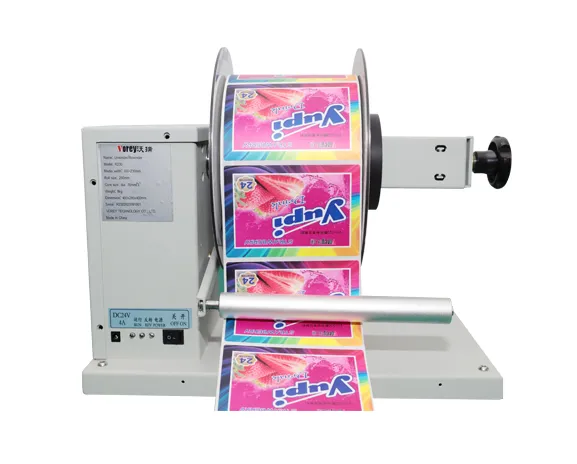

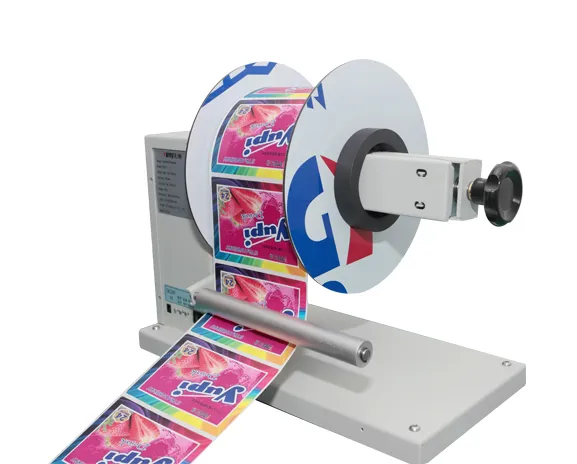

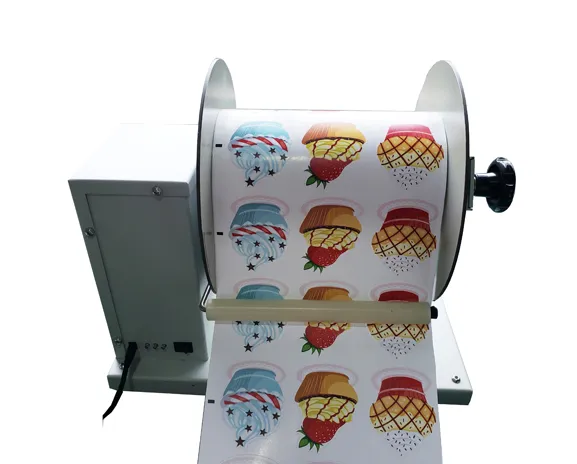

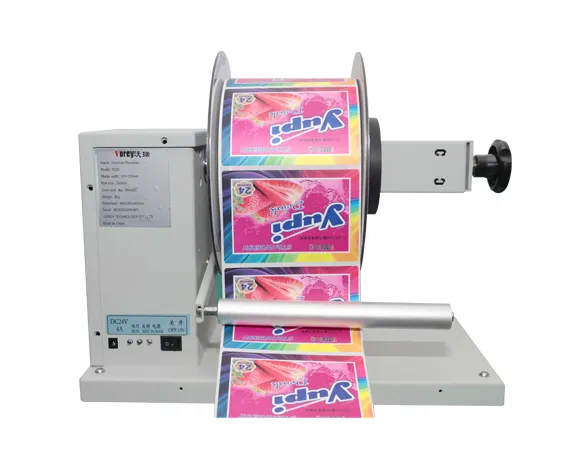

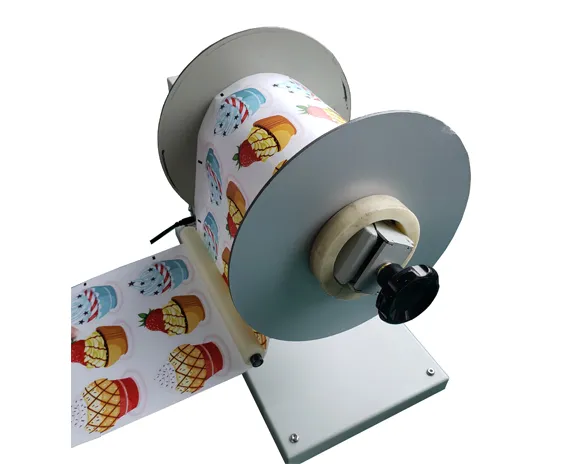

The VOREY R230 is a compact automatic label rewinder/unwinder designed for roll-fed printing workflows using media from 20 to 230 mm wide. It supports rolls up to 250 mm in diameter, a 76 mm core and an operating speed of 18 m/min.
Weighing 8 kg and operating from a 100–240 VAC, 50 W power supply, the R230 can be configured to feed roll media to a compatible printer or collect printed output. An optional connection frame is available for VIPColor label printers. The printer model, web dimensions, roll weight, winding direction and installation position should be confirmed before ordering.
Model-Specific Technical Data
Use the dimensions of the actual roll and the normal operating speed of the printer when checking the R230. A label size alone is not enough to confirm compatibility because the machine handles the complete backing web and finished roll.
| R230 Parameter | Specification |
|---|---|
| Maximum media roll diameter | 250 mm |
| Media width | 20–230 mm |
| Core diameter | 76 mm |
| Operating speed | 18 m/min |
| Machine size | 210 × 445 × 355 mm |
| Machine weight | 8 kg |
| Power supply | 100–240 VAC, 50 W |
| Standard warranty | 1 year |
Compare every item below with the job you plan to run. Passing the width check does not by itself confirm that the roll, printer and installation arrangement are compatible.
| Buyer’s Data | R230 Reference | What to Check |
|---|---|---|
| Complete web width | 20–230 mm | Measure the full backing web, not one label. |
| Largest roll outside diameter | Maximum 250 mm | Measure the largest loaded or completed roll. |
| Core diameter | 76 mm | Confirm the cores used in actual production. |
| Normal production speed | Listed speed: 18 m/min | Use the real speed for the intended material and print mode. |
| Approximate full-roll weight | Confirm with VOREY | Provide the heaviest roll expected in the job. |
| Winding direction | Confirm with VOREY | State whether the printed surface must face inward or outward. |
The listed machine size is 210 × 445 × 355 mm, but installation space should not be calculated from the housing alone. Allow space for the loaded roll, operator access and a straight web path between the R230 and the printer.
Available space beside the printer
Printer inlet or outlet height
Maximum roll clearance during operation
Required direction of media travel
Operator access for loading and unloading
Location of the power connection
An optional connection frame is available for a VIPColor label printer. Before the frame and installation position are confirmed, provide the exact printer model and show whether the R230 will feed media into the printer or collect media after printing.
Using another printer: compatibility should be reviewed rather than assumed. Send the printer model, dimensions, media path and production data for confirmation.
Run the first job as a controlled test before moving to continuous production. The purpose is to confirm the real roll, web path and printer response together.
The R230 is a roll-handling unit. It should not be specified as a substitute for machinery responsible for cutting, separating or inspecting the printed web.
| R230 Roll-Handling Tasks | Separate Equipment May Be Required For |
|---|---|
| Feeding a roll into a compatible printer | Slitting a wide web into narrower rolls |
| Collecting printed output onto a core | Die cutting the printed label shape |
| Supporting rewinding or unwinding configurations | Removing waste matrix or inspecting print quality |
If your job requires narrower finished rolls, review VOREY's label slitting machine options separately.
Providing complete production data allows VOREY to review the roll, printer and installation arrangement before preparing the quotation.
Need to compare the role of equipment before and after the printer? Return to VOREY's automatic label rewinder and unwinder solutions page. For printer specifications, visit the digital label printer category.
The listed media-width range is 20–230 mm. Measure the complete backing web rather than an individual label.
The listed maximum media roll diameter is 250 mm. Roll weight and installation clearance should also be confirmed.
The R230 specification lists a 76 mm core diameter. Confirm the cores used in your facility before ordering.
The listed operating speed is 18 m/min. Compare this value with the normal speed of the intended printer, material and job.
An optional connection frame is available for a VIPColor label printer. Provide the exact printer model and intended installation side for confirmation.
Compatibility must be reviewed. Send the printer model, web path, operating speed, roll dimensions and installation measurements rather than assuming a direct fit.
Provide the exact printer model, media width, roll diameter, core, full-roll weight, material, normal speed, winding direction and required installation position.
