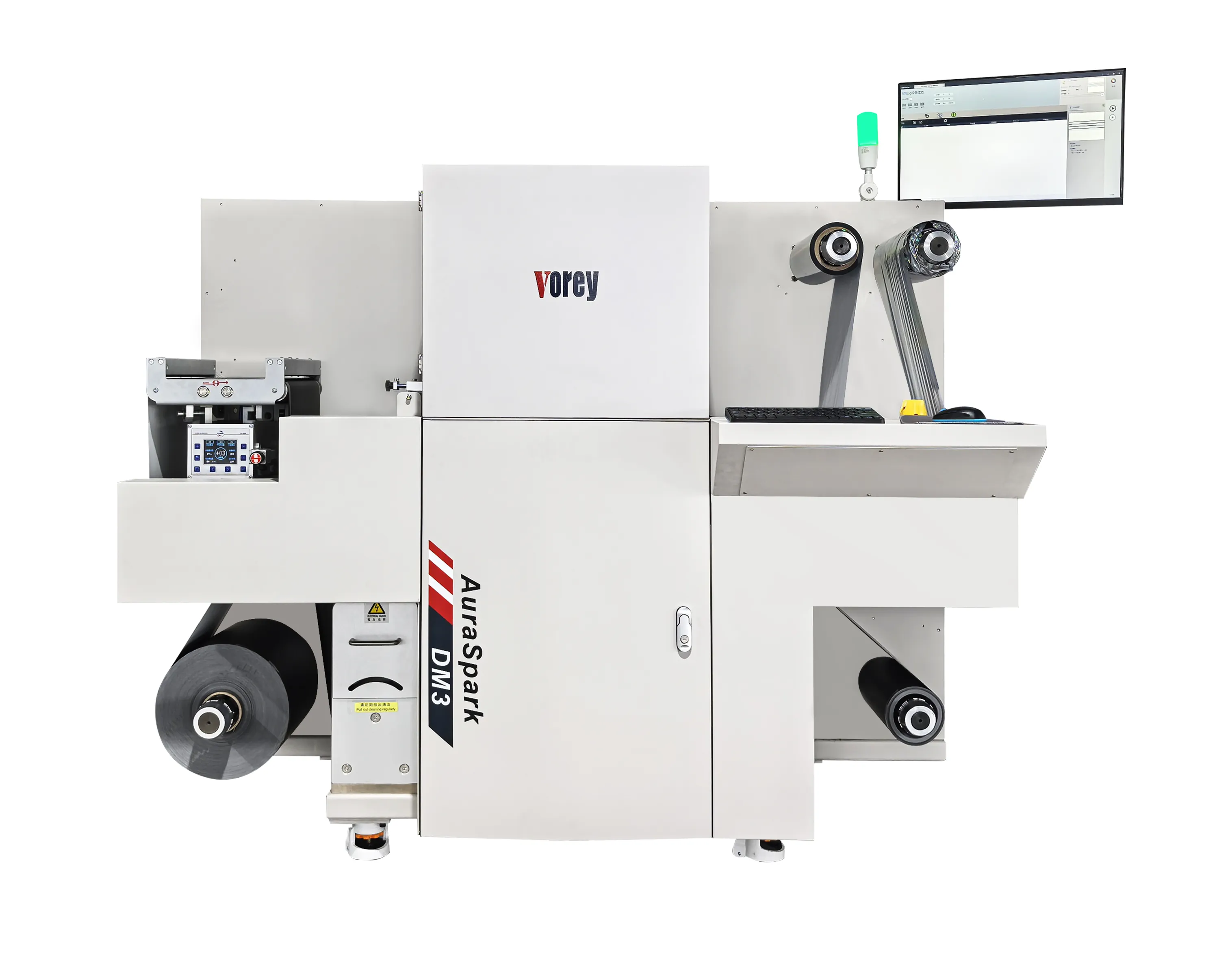

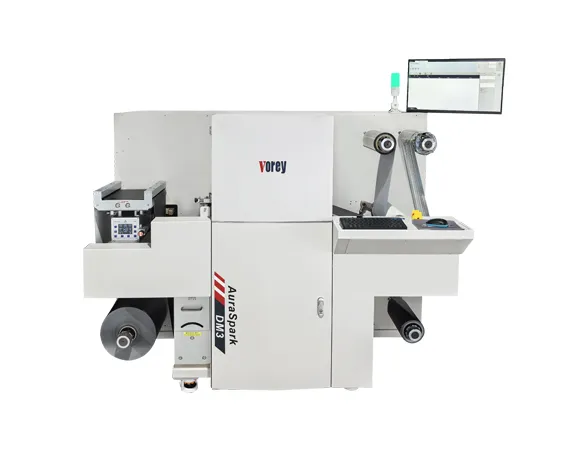

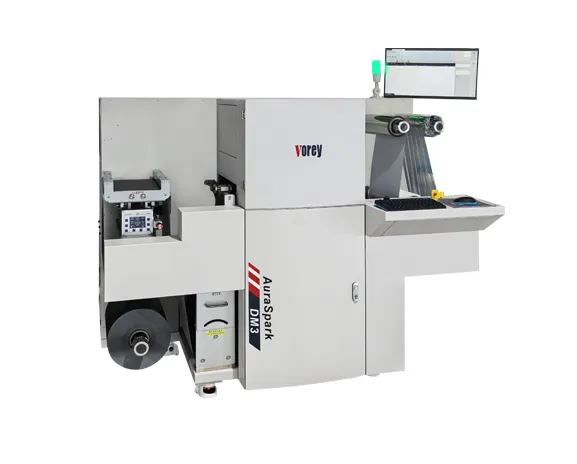

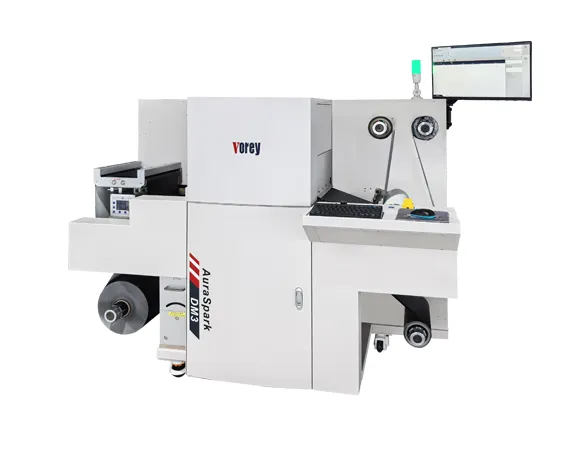

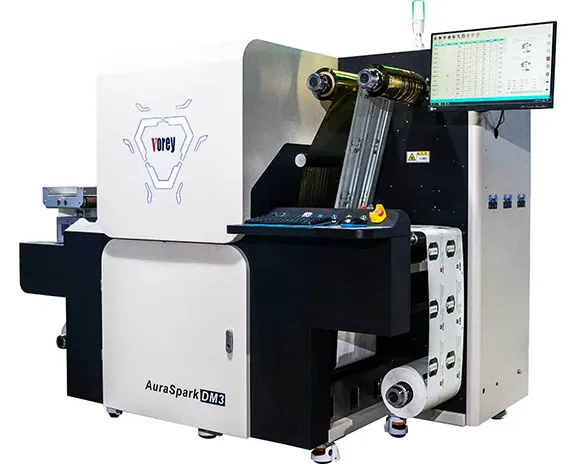

The digital post-press efficiency hot stamping equipment does not require a hot stamping plate and can achieve functions such as local varnish, 3D embossing, laser transfer, hot stamping, and Braille. It integrates cold stamping and hot stamping, featuring high efficiency, high stability, high quality, and low cost. It perfectly matches traditional printing, digital printing and other processing techniques.
The feed width reaches 360 millimeters, which can meet the demands of most label manufacturers. The equipped guided deviation correction system makes the paper feeding system more stable.
It is equipped with standard automatic tension control and corona processor as standard configuration.which can enhance the adhesion of materials such as PET, PVC, PP, and coated paper and their surfaces.
The powerful and friendly user interface makes the operation process simpler. It has functions such as cost accounting, material warehouse management, and data statistics.
The unique hot stamping unit design allows for the use of various types of hot stamping aluminum foil.
| Print speed | 3-25 meters/min | |
| Print technology | Drop on demand | |
| Ink type | UV | |
| Printer width | 280/350mm | |
| Media width | 70-360mm | |
| Print quality | 720*720dpi/720*1440dpi / 720*2880dpi | |
| Grayscale | Seven levels of gray | |
| Printing thickness | 15-100um | |
| Substrate types | 60-350um Digital coated/uncoated paper types, PET, PP, PE, synthetic paper All of media was tested in special environment, not tested media possible can't be used | |
| Print Mode | continuous, black mark | |
| Roll up and roll up | Roll media diameter:480mm Connect media table:350MM Roll media core diameter:76.2mm Max. weight roll media:47.2kgs Auto tension adjustment system | |
| Gilding method | Cold scalding or hot scalding | |
| Secondary accuracy | ± 0.15MM | |
| Curing mode | LED UV | |
| Size(D*W*H) | 1800*1380*1460mm | |
| Weight | Print engine：about 750KGS | |
| Operating environment | Temperature：20℃-23℃ Humidity：45-55% | |
| Power supply | 380V-3PH+N+PN-20A | |
| Warranty | 1 year (excluding high consumable parts) | |
